Cylindrical Stereographic

Cyl_stere/[lon0/][lat0/]width: Give central meridian lon0 (optional) and standard parallel lat0 (optional). The standard parallel is typically one of these (but can be any value):

  • 66.159467 - Miller’s modified Gall

  • 55 - Kamenetskiy’s First

  • 45 - Gall’s Stereographic

  • 30 - Bolshoi Sovietskii Atlas Mira or Kamenetskiy’s Second

  • 0 - Braun’s Cylindrical

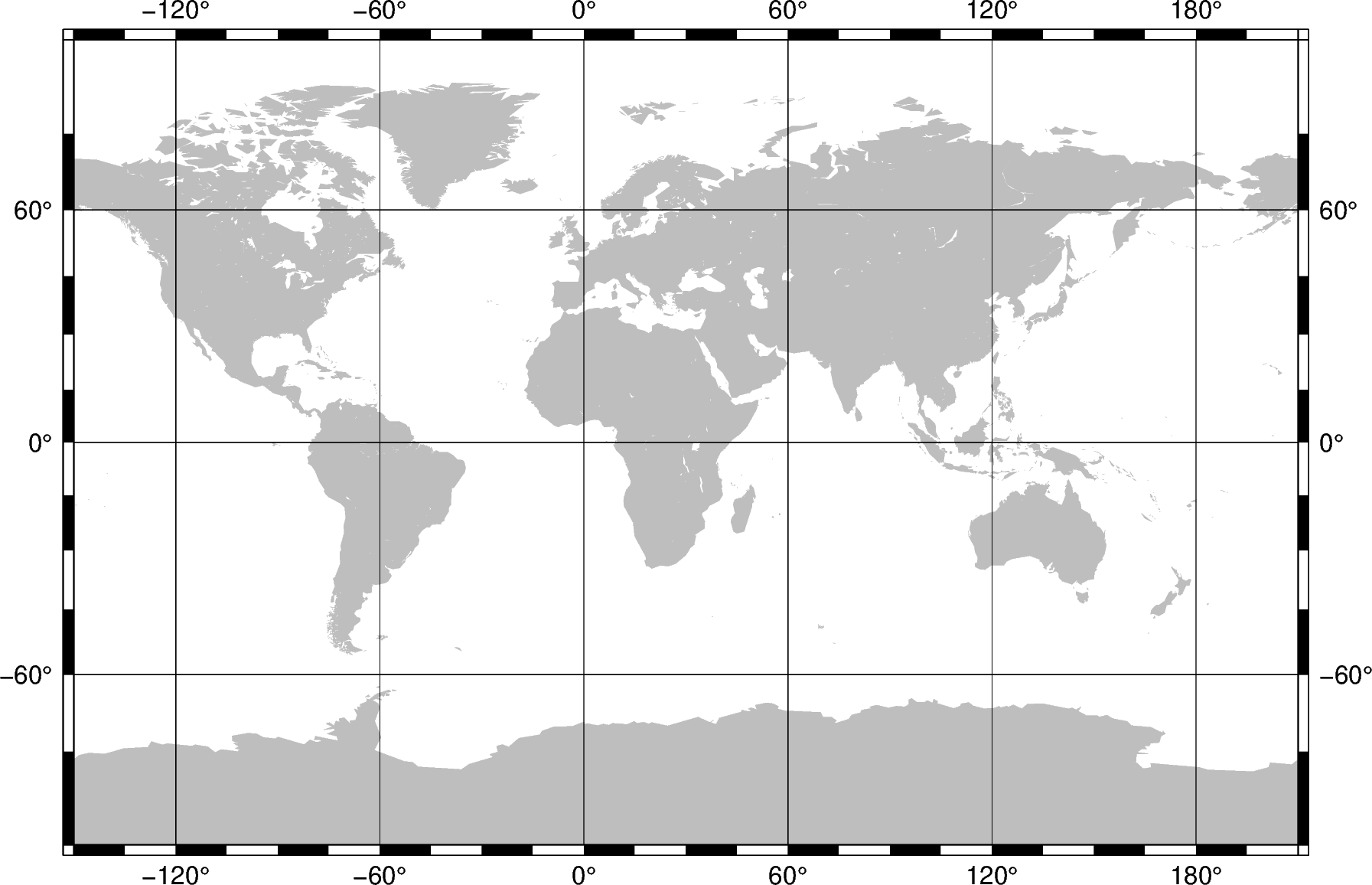

cyl stereographic

Out:

<IPython.core.display.Image object>

import pygmt

fig = pygmt.Figure()
fig.coast(region="g", frame="afg", land="gray", projection="Cyl_stere/30/-20/8i")
fig.show()

Total running time of the script: ( 0 minutes 0.932 seconds)
