Frames, ticks, titles, and labels

Setting the style of the map frames, ticks, etc, is handled by the frame argument that all plotting methods of pygmt.Figure.

import pygmt

Plot frame

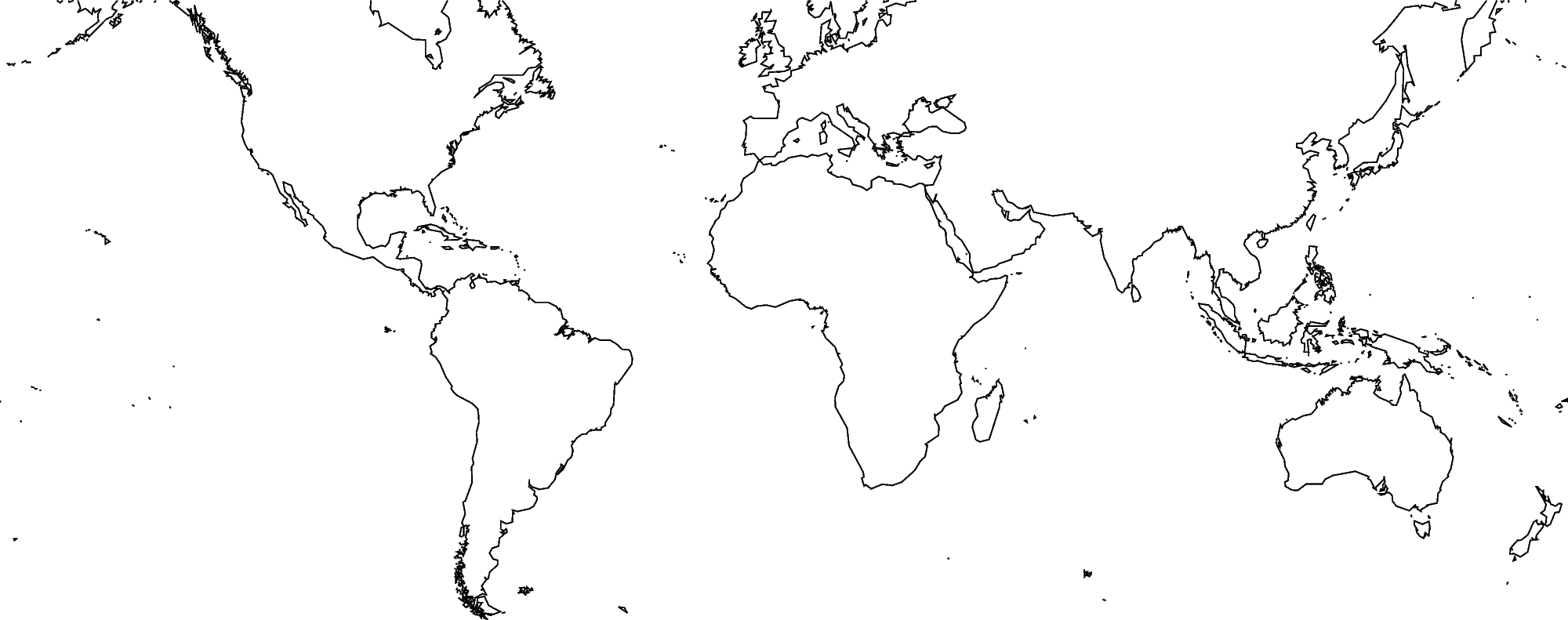

By default, PyGMT does not add a frame to your plot. For example, we can plot the coastlines of the world with a Mercator projection:

fig = pygmt.Figure()
fig.coast(shorelines="1/0.5p", region=[-180, 180, -60, 60], projection="M10i")
fig.show()
frames

Out:

<IPython.core.display.Image object>

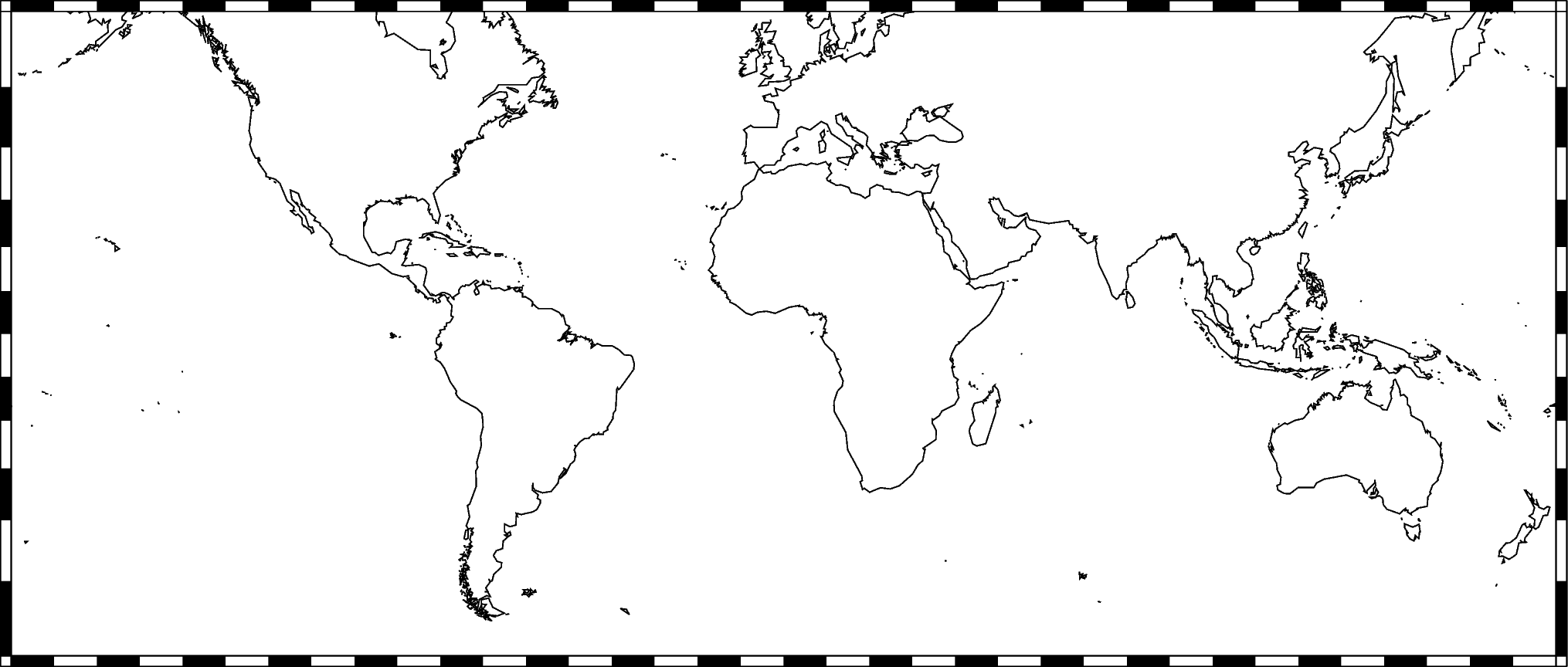

To add the default GMT frame to the plot, use frame="f" in pygmt.Figure.basemap or any other plotting module:

fig = pygmt.Figure()
fig.coast(shorelines="1/0.5p", region=[-180, 180, -60, 60], projection="M10i")
fig.basemap(frame="f")
fig.show()
frames

Out:

<IPython.core.display.Image object>

Ticks and grid lines

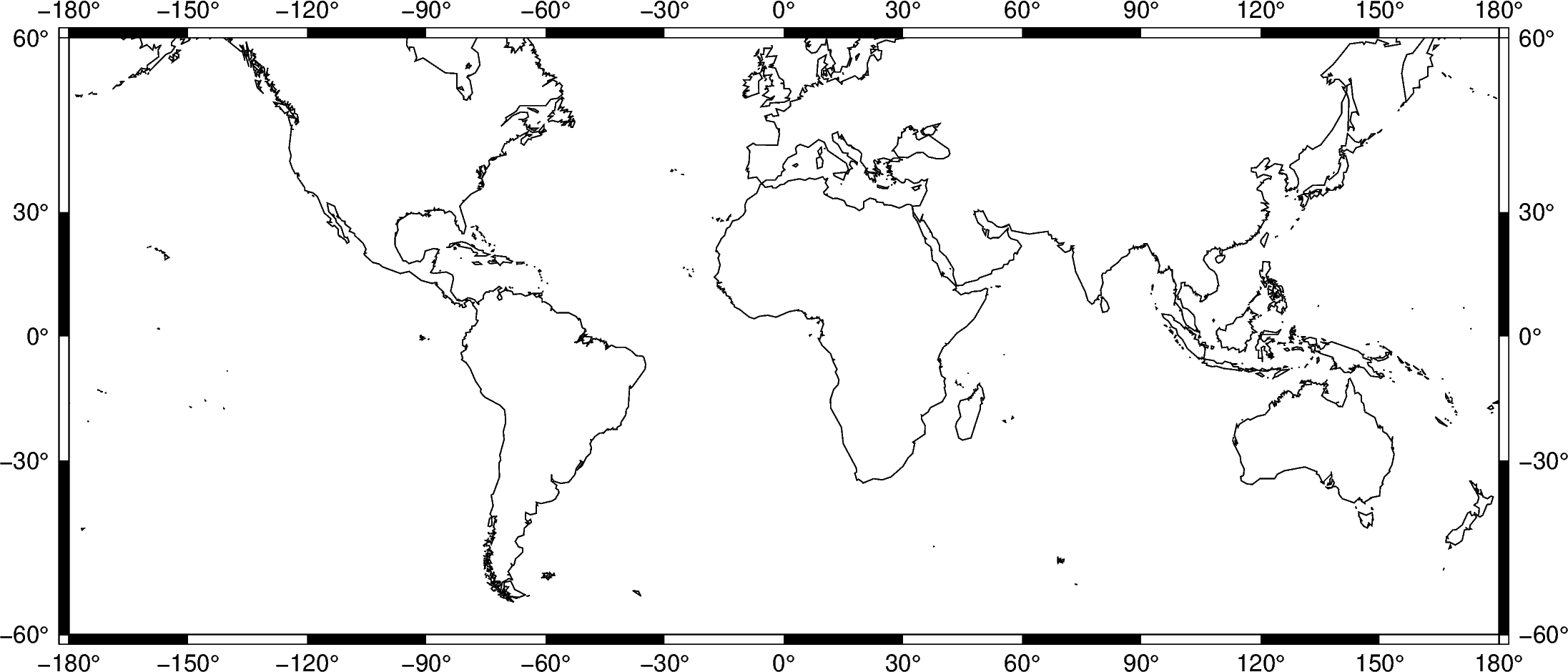

The automatic frame (frame=True or frame="a") sets the default GMT style frame and automatically determines tick labels from the plot region.

fig = pygmt.Figure()
fig.coast(shorelines="1/0.5p", region=[-180, 180, -60, 60], projection="M10i")
fig.basemap(frame="a")
fig.show()
frames

Out:

<IPython.core.display.Image object>

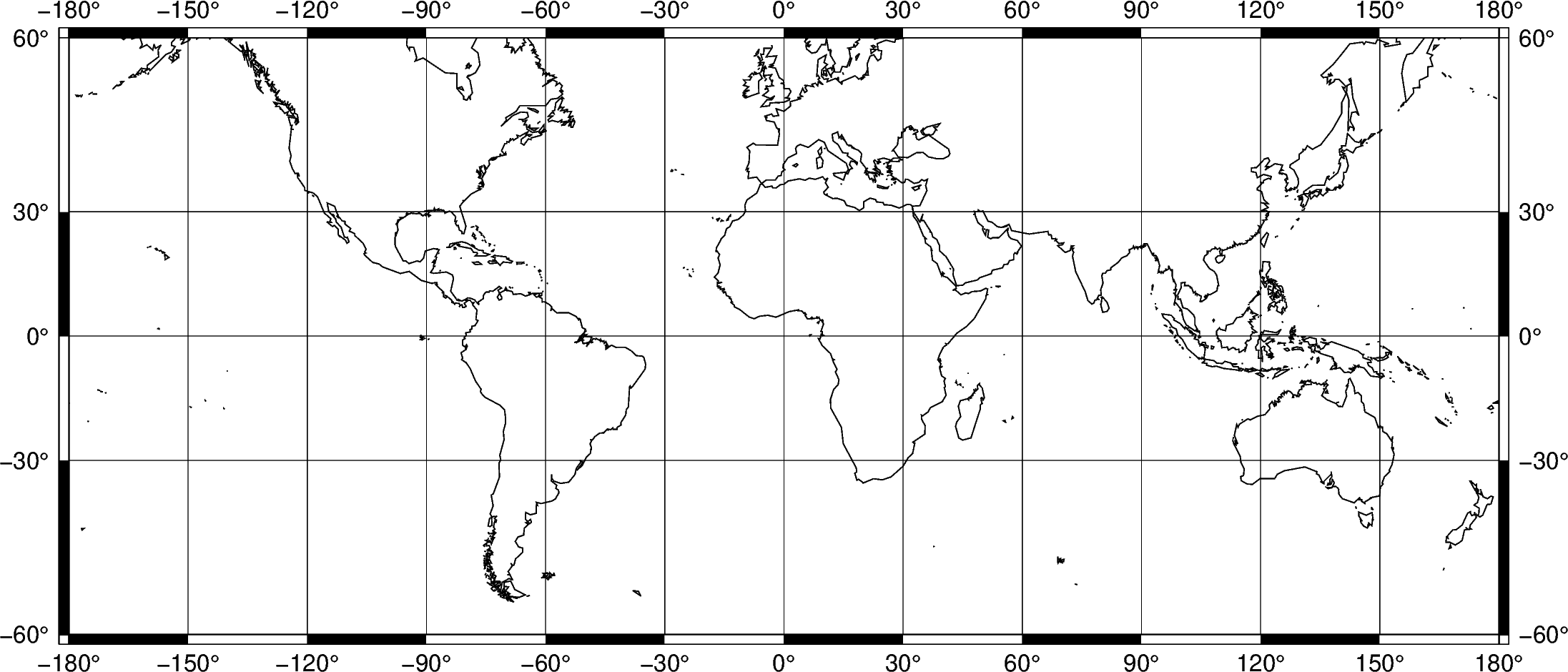

Add automatic grid lines to the plot by adding a g to frame:

fig = pygmt.Figure()
fig.coast(shorelines="1/0.5p", region=[-180, 180, -60, 60], projection="M10i")
fig.basemap(frame="ag")
fig.show()
frames

Out:

<IPython.core.display.Image object>

Total running time of the script: ( 0 minutes 3.230 seconds)
