Click here to download the full example code
This cylindrical projection is actually several projections, depending on what latitude is selected as the standard parallel. However, they are all equal area and hence non-conformal. All meridians and parallels are straight lines.
ylon0/lat0/scale or Ylon0/lat0/width
The projection is set with y or Y. The projection center is set by lon0/lat0, and the figure size is set with scale or width.

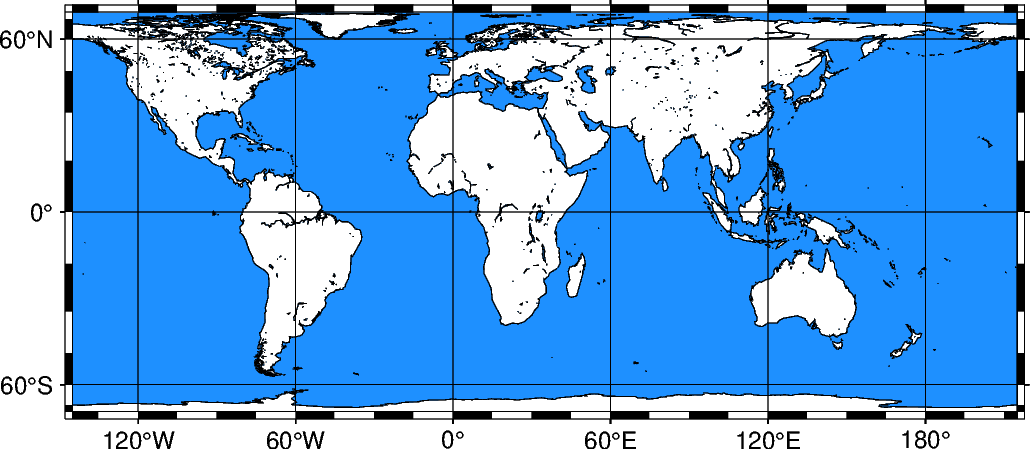

import pygmt fig = pygmt.Figure() # Use region "d" to specify global region (-180/180/-90/90) fig.coast( region="d", projection="Y35/30/12c", water="dodgerblue", shorelines="thinnest", frame="afg", ) fig.show()
Total running time of the script: ( 0 minutes 0.961 seconds)
