Cylindrical equal-area

This cylindrical projection is actually several projections, depending on what latitude is selected as the standard parallel. However, they are all equal area and hence non-conformal. All meridians and parallels are straight lines.

ylon0/lat0/scale or Ylon0/lat0/width

The projection is set with y or Y. The projection center is set by lon0/lat0, and the figure size is set with scale or width.

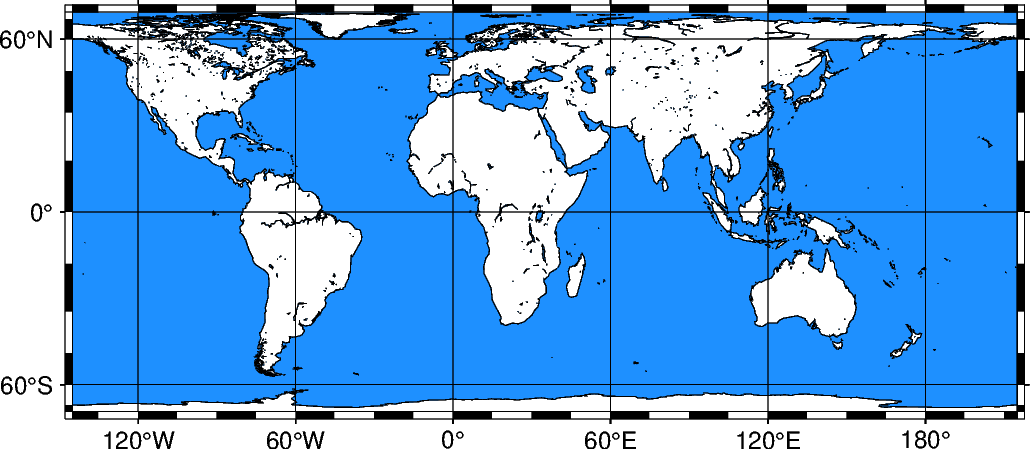

cyl equal area

Out:

<IPython.core.display.Image object>

import pygmt

fig = pygmt.Figure()
# Use region "d" to specify global region (-180/180/-90/90)
fig.coast(
    region="d",
    projection="Y35/30/12c",
    water="dodgerblue",
    shorelines="thinnest",
    frame="afg",
)
fig.show()

Total running time of the script: ( 0 minutes 0.928 seconds)
