Azimuthal Equidistant

The main advantage of this projection is that distances from the projection center are displayed in correct proportions. Also directions measured from the projection center are correct. It is very useful for a global view on locations that lie within a certain distance or for comparing distances of different locations relative to the projection center.

elon0/lat0[/horizon]/scale or Elon0/lat0[/horizon]/width

lon0/lat0 specifies the projection center. The optional parameter horizon specifies the max distance to the projection center (i.e. the visibile portion of the rest of the world map) in degrees <= 180° (default 180°).

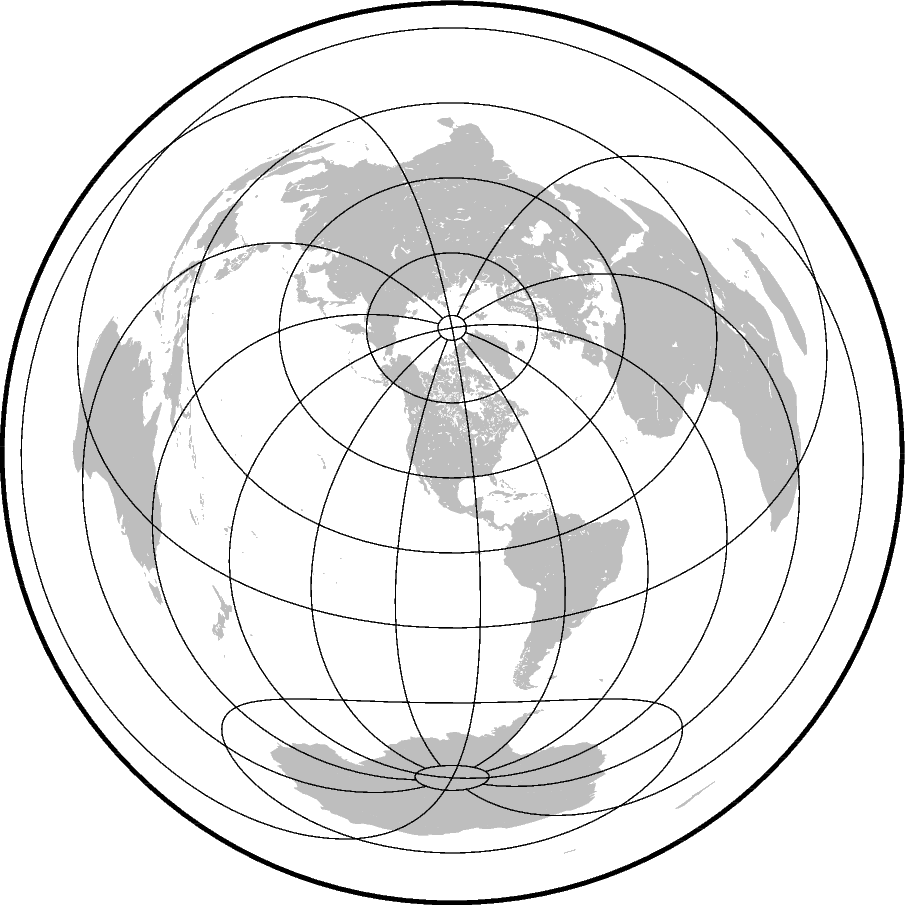

azim equidistant

Out:

<IPython.core.display.Image object>

import pygmt

fig = pygmt.Figure()
fig.coast(projection="E-100/40/4.5i", region="g", frame="g", land="gray")
fig.show()

Total running time of the script: ( 0 minutes 1.156 seconds)
