The point of perspective of the gnomonic projection lies at the center of the earth. As a consequence great circles (orthodromes) on the surface of the earth are displayed as straight lines, which makes it suitable for distance estimation for navigational purposes. It is neither conformal nor equal-area and the distortion increases greatly with distance to the projection center. It follows that the scope of application is restricted to a small area around the projection center (at a maximum of 60°).

flon0/lat0[/horizon]/scale or Flon0/lat0[/horizon]/width

lon0/lat0 specify the projection center, the optional parameter horizon specifies the max distance from projection center (in degrees, < 90, default 60).

azim gnomonic


<IPython.core.display.Image object>

import pygmt

fig = pygmt.Figure()

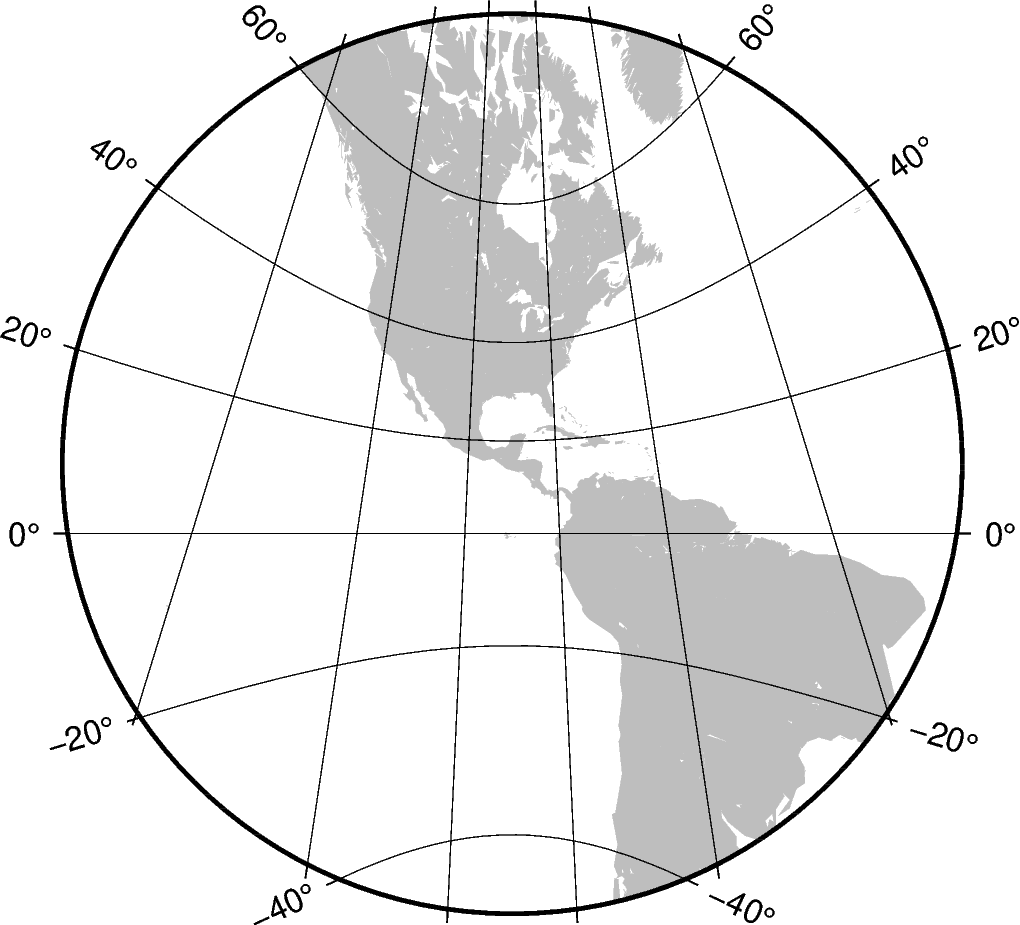

fig.coast(projection="F-90/15/4.5i", region="g", frame="20g20", land="gray")

Total running time of the script: ( 0 minutes 0.732 seconds)
