Adding an inset to the figureΒΆ

To plot an inset figure inside another larger figure, we can use the pygmt.Figure.inset method. After a large figure has been created, call inset using a with statement, and new plot elements will be added to the inset figure instead of the larger figure.

Note

This tutorial assumes the use of a Python notebook, such as IPython or Jupyter Notebook. To see the figures while using a Python script instead, use fig.show(method="external") to display the figure in the default PDF viewer.

To save the figure, use fig.savefig("figname.pdf") where "figname.pdf" is the desired name and file extension for the saved figure.

import pygmt

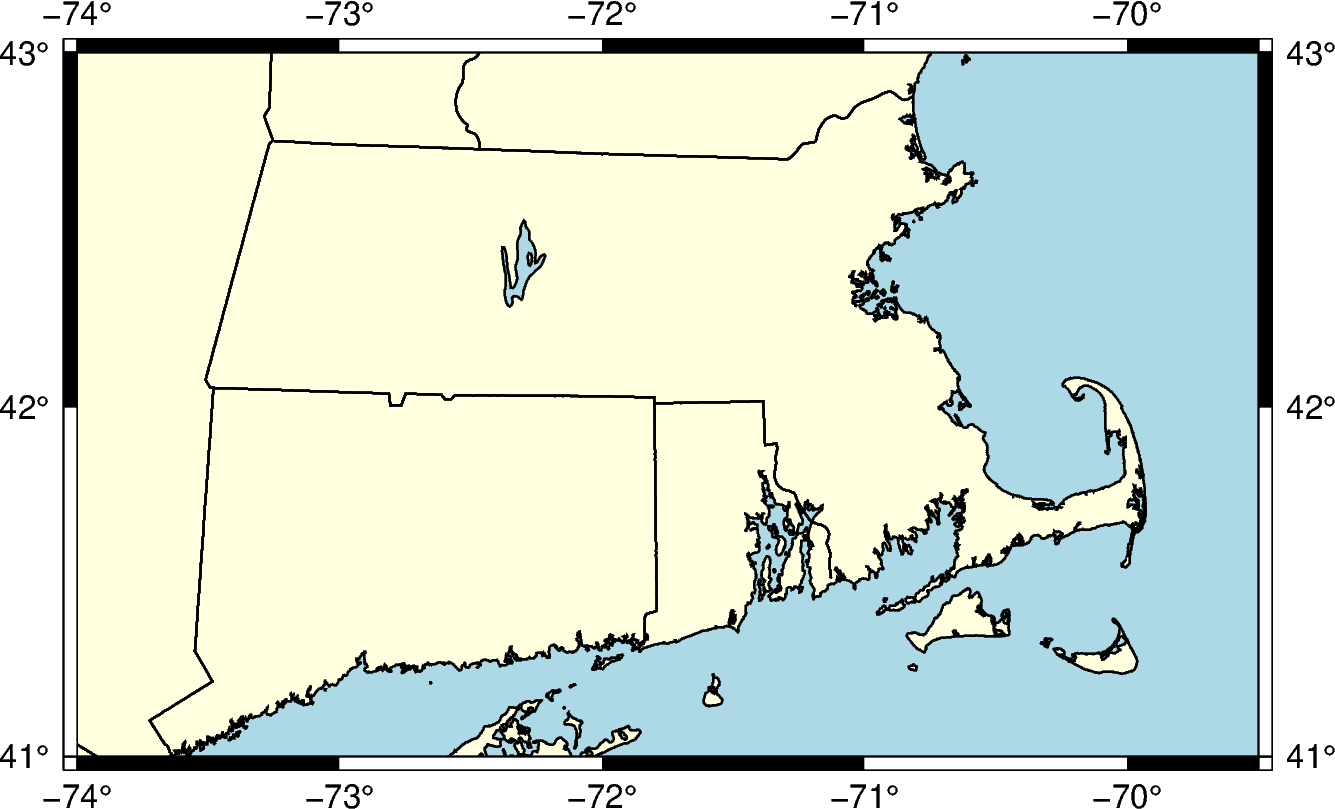

Prior to creating an inset figure, a larger figure must first be plotted. In the example below, pygmt.Figure.coast is used to create a map of the US state of Massachusetts.

fig = pygmt.Figure()
fig.coast(
    region=[-74, -69.5, 41, 43],  # Set bounding box of the large figure
    borders="2/thin",  # Plot state boundaries with thin lines
    shorelines="thin",  # Plot coastline with thin lines
    projection="M15c",  # Set Mercator projection and size of 15 centimeter
    land="lightyellow",  # Color land areas light yellow
    water="lightblue",  # Color water areas light blue
    frame="a",  # Set frame with annotation and major tick spacing
)
fig.show()
insets

Out:

<IPython.core.display.Image object>

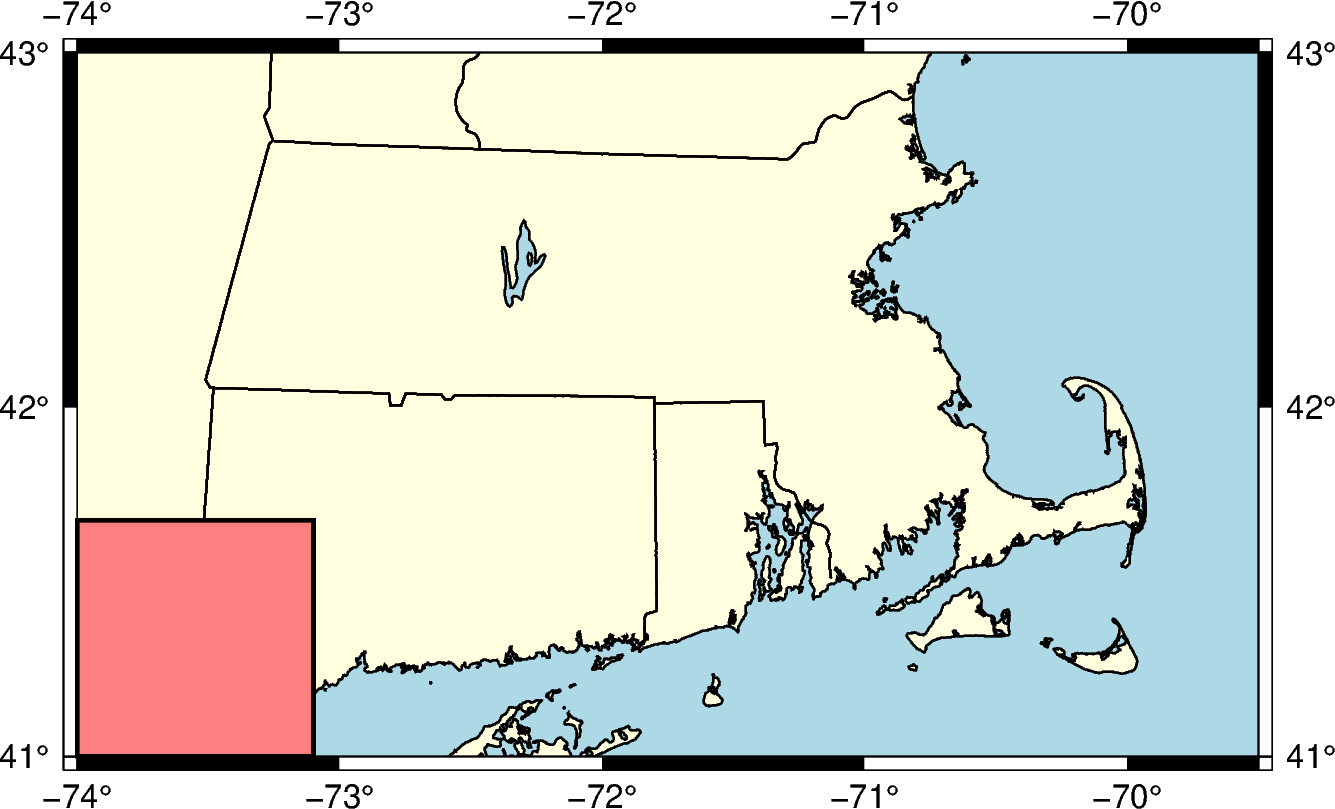

The pygmt.Figure.inset method uses a context manager, and is called using a with statement. The position parameter, including the inset width, is required to plot the inset. Using the j argument, the location of the inset is set to one of the 9 anchors (bottom-middle-top and left-center-right). In the example below, BL sets the inset to the bottom left. The box parameter can set the fill and border of the inset. In the example below, +pblack sets the border color to black and +gred sets the fill to red.

fig = pygmt.Figure()
fig.coast(
    region=[-74, -69.5, 41, 43],
    borders="2/thin",
    shorelines="thin",
    projection="M15c",
    land="lightyellow",
    water="lightblue",
    frame="a",
)
with fig.inset(position="jBL+w3c", box="+pblack+glightred"):
    # pass is used to exit the with statement as no plotting functions are called
    pass
fig.show()
insets

Out:

<IPython.core.display.Image object>

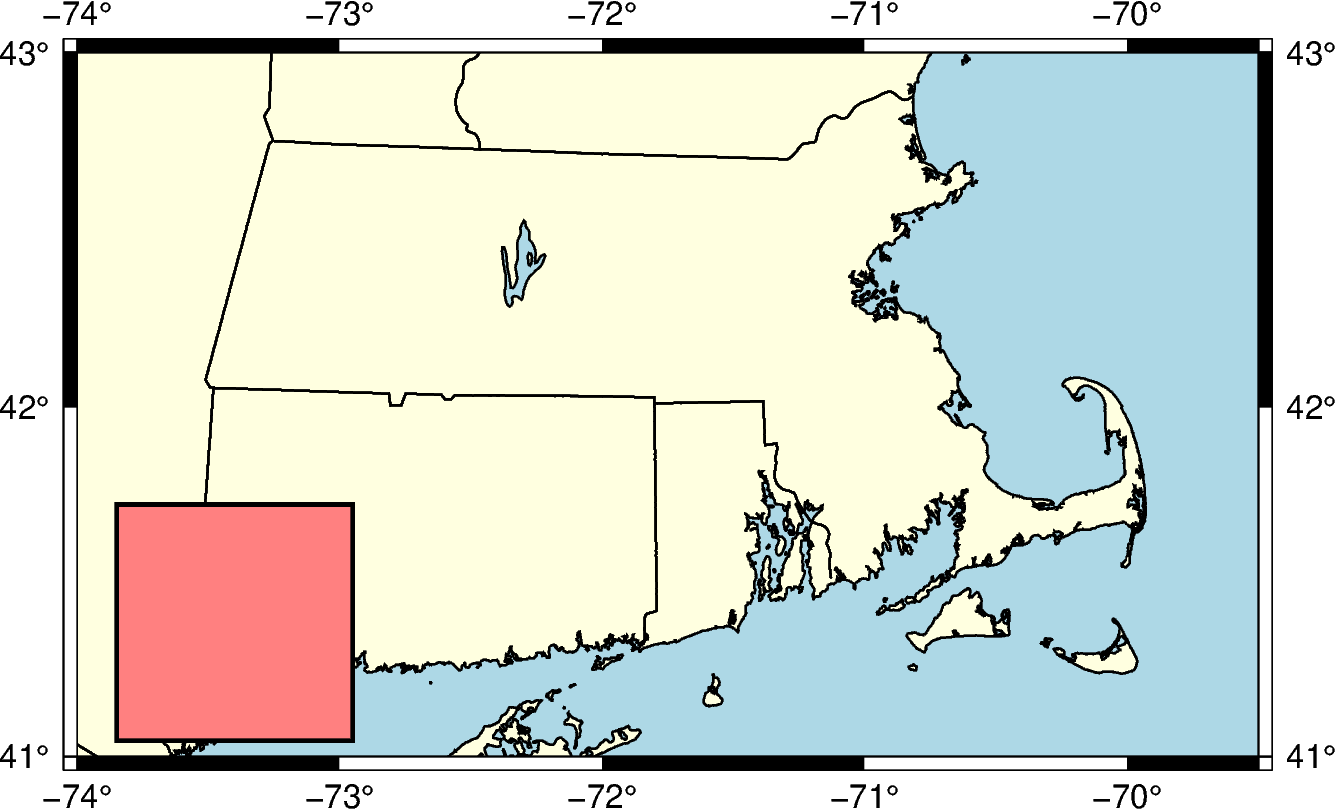

When using j to set the anchor of the inset, the default location is in contact with the nearby axis or axes. The offset of the inset can be set with +o, followed by the offsets along the x- and y-axis. If only one offset is passed, it is applied to both axes. Each offset can have its own unit. In the example below, the inset is shifted 0.5 centimeters on the x-axis and 0.2 centimeters on the y-axis.

fig = pygmt.Figure()
fig.coast(
    region=[-74, -69.5, 41, 43],
    borders="2/thin",
    shorelines="thin",
    projection="M15c",
    land="lightyellow",
    water="lightblue",
    frame="a",
)
with fig.inset(position="jBL+w3c+o0.5c/0.2c", box="+pblack+glightred"):
    pass
fig.show()
insets

Out:

<IPython.core.display.Image object>

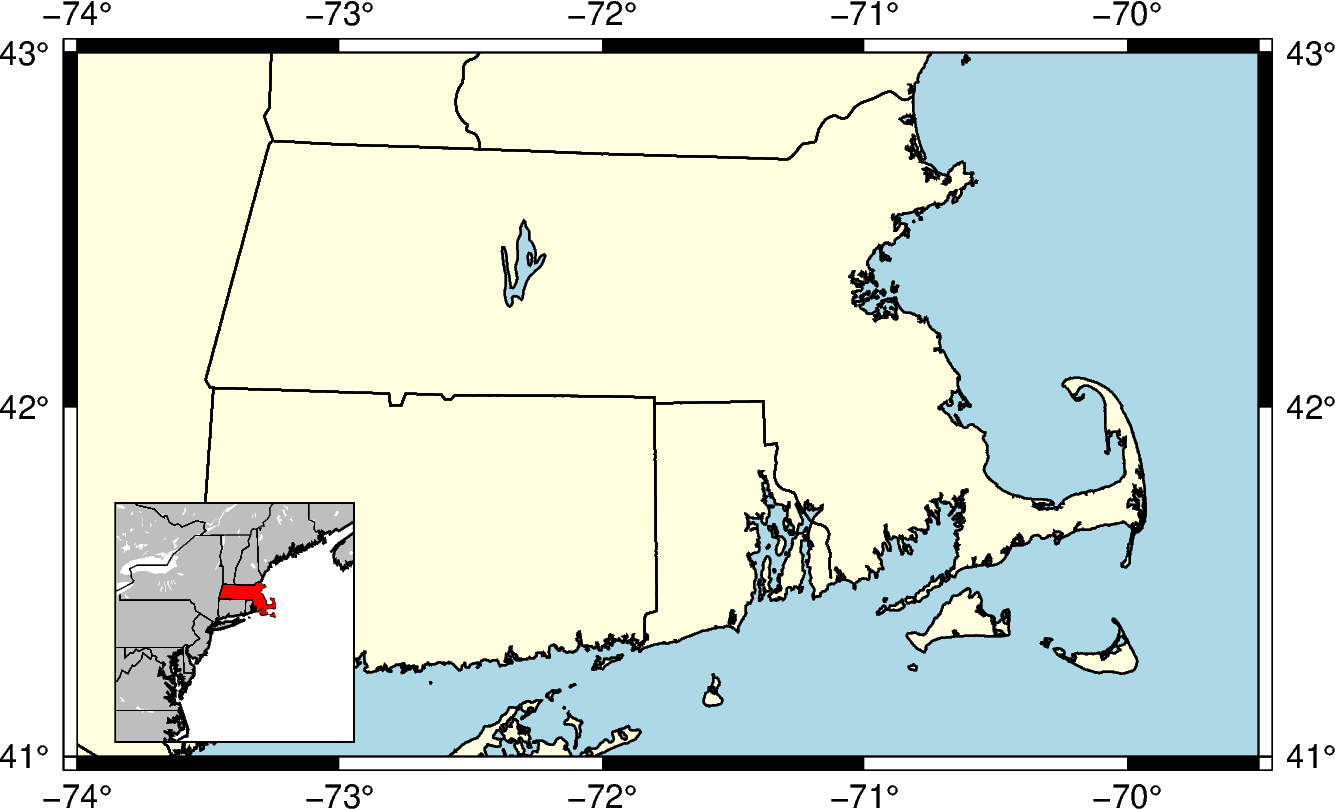

Standard plotting functions can be called from within the inset context manager. The example below uses pygmt.Figure.coast to plot a zoomed out map that selectively paints the state of Massachusetts to shows its location relative to other states.

fig = pygmt.Figure()
fig.coast(
    region=[-74, -69.5, 41, 43],
    borders="2/thin",
    shorelines="thin",
    projection="M15c",
    land="lightyellow",
    water="lightblue",
    frame="a",
)
# This does not include an inset fill as it is covered by the inset figure
with fig.inset(position="jBL+w3c+o0.5c/0.2c", box="+pblack"):
    # Use a plotting function to create a figure inside the inset
    fig.coast(
        region=[-80, -65, 35, 50],
        projection="M3c",
        land="gray",
        borders=[1, 2],
        shorelines="1/thin",
        water="white",
        # Use dcw to selectively highlight an area
        dcw="US.MA+gred",
    )
fig.show()
insets

Out:

<IPython.core.display.Image object>

Total running time of the script: ( 0 minutes 6.266 seconds)
