This is a perspective projection like the general perspective, but with the difference that the point of perspective lies in infinite distance. It is therefore often used to give the appearance of a globe viewed from outer space, were one hemisphere can be seen as a whole. It is neither conformal nor equal-area and the distortion increases near the edges.
glon0/lat0[/horizon]/scale or Glon0/lat0[/horizon]/width
g or G specifies the projection type, lon0/lat0 specifies the projection center, the optional parameter horizon specifies the maximum distance from projection center (in degrees, <= 90, default 90), and scale and width set the figure size.

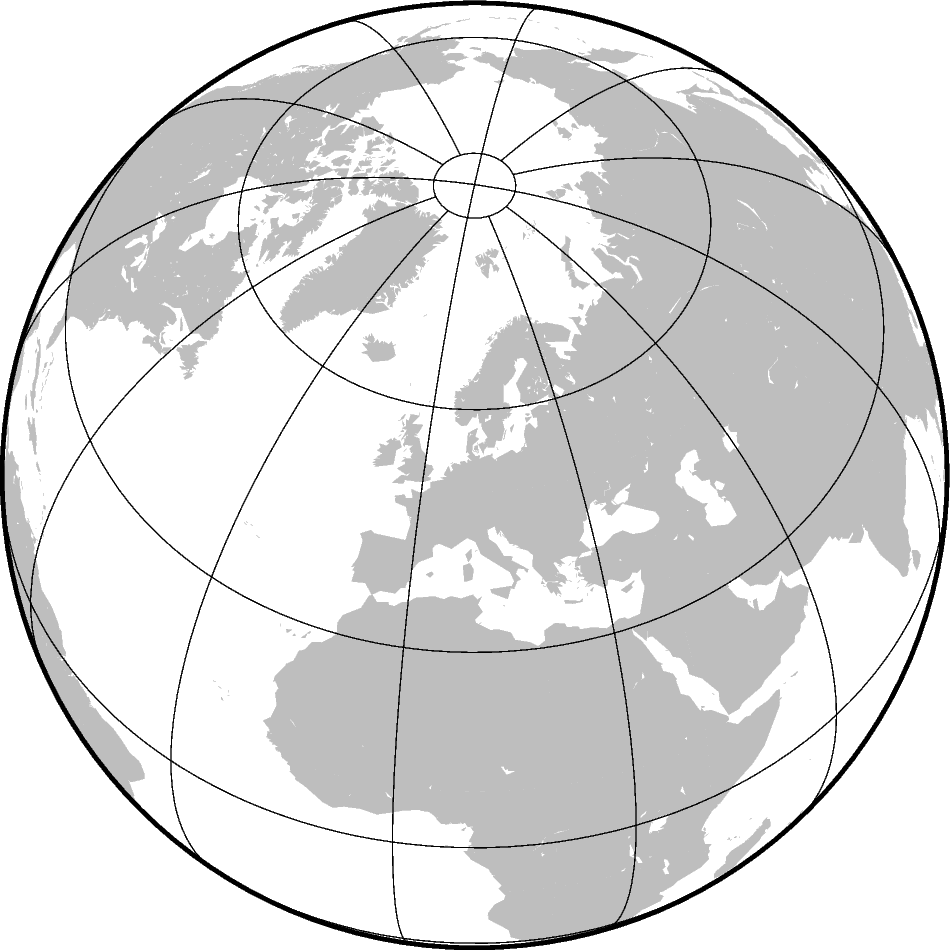

import pygmt fig = pygmt.Figure() fig.coast(projection="G10/52/12c", region="g", frame="g", land="gray") fig.show()
Total running time of the script: ( 0 minutes 1.280 seconds)
