# Cartesian logarithmicΒΆ

**X***width*[**l**]/[*height*[**l**]]: Give the *width* of the figure and
the optional *height*. The axis or axes with a logarithmic transformation requires
**l** after its size argument.

Out:

```

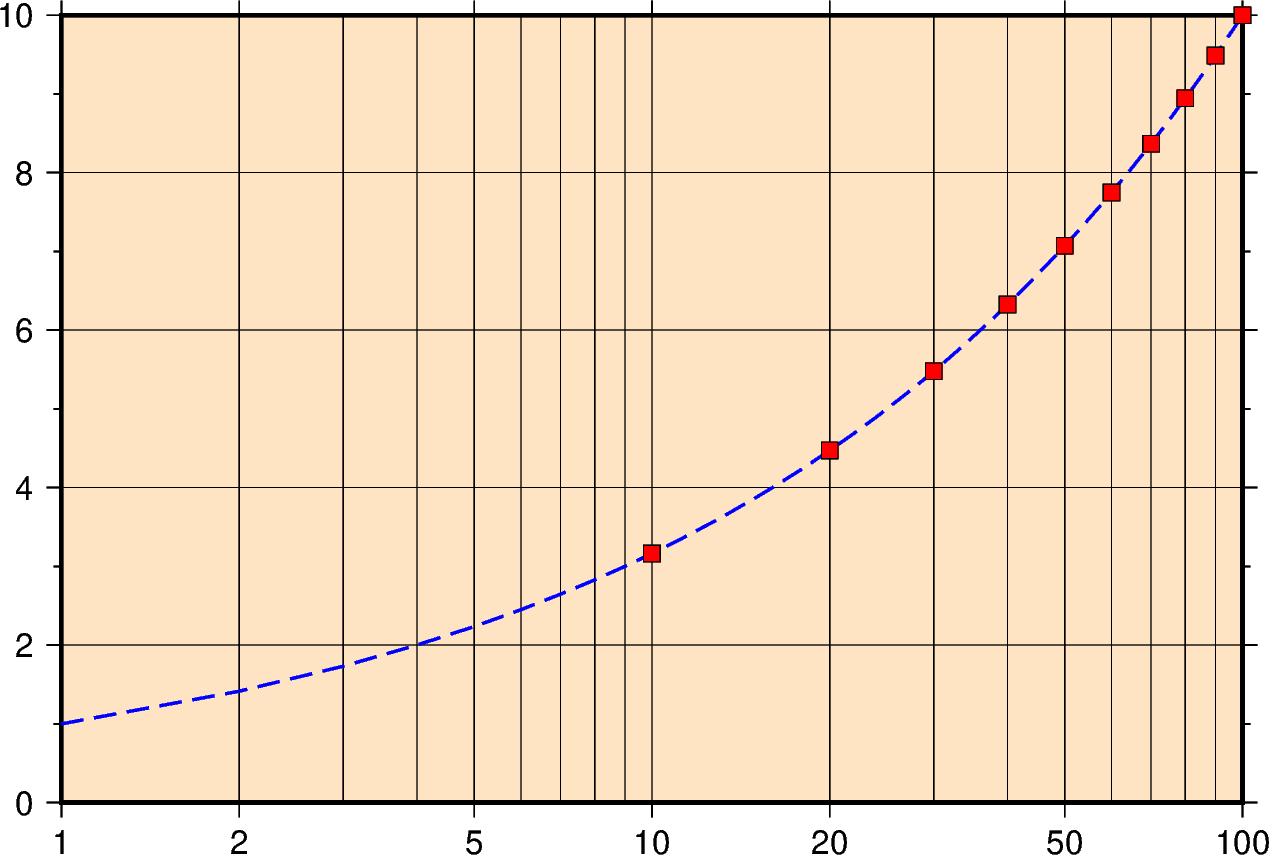

<IPython.core.display.Image object>
```

```
import numpy as np
import pygmt
# Create a list of x values 0-100
xline = np.arange(0, 101)
# Create a list of y-values that are the square root of the x-values
yline = xline ** 0.5
# Create a list of x values for every 10 in 0-100
xpoints = np.arange(0, 101, 10)
# Create a list of y-values that are the square root of the x-values
ypoints = xpoints ** 0.5
fig = pygmt.Figure()
fig.plot(
region=[1, 100, 0, 10],
# Set a logarithmic transformation on the x-axis
projection="X15cl/10c",
# Set the figures frame, color, and gridlines
frame=["WSne+gbisque", "x2g3", "ya2f1g2"],
x=xline,
y=yline,
# Set the line thickness to *1p*, the color to *blue*, and the style to *dash*
pen="1p,blue,-",
)
# Plot square root values as points on the line
# Style of points is 0.3 cm square, color is *red* with a *black* outline
# Points are not clipped if they go off the figure
fig.plot(x=xpoints, y=ypoints, style="s0.3c", color="red", no_clip=True, pen="black")
fig.show()
```

**Total running time of the script:** ( 0 minutes 1.298 seconds)
