class pygmt.Figure[source]

A GMT figure to handle all plotting.

Use the plotting methods of this class to add elements to the figure. You can preview the figure using and save the figure to a file using pygmt.Figure.savefig.

Unlike traditional GMT figures, no figure file is generated until you call pygmt.Figure.savefig or pygmt.Figure.psconvert.


>>> fig = Figure()
>>> fig.basemap(region=[0, 360, -90, 90], projection="W7i", frame=True)
>>> fig.savefig("my-figure.png")
>>> # Make sure the figure file is generated and clean it up
>>> import os
>>> os.path.exists("my-figure.png")
>>> os.remove("my-figure.png")

The plot region can be specified through ISO country codes (for example, 'JP' for Japan):

>>> fig = Figure()
>>> fig.basemap(region="JP", projection="M3i", frame=True)
>>> # The fig.region attribute shows the WESN bounding box for the figure
>>> print(", ".join(f"{i:.2f}" for i in fig.region))
122.94, 145.82, 20.53, 45.52

Methods Summary

Figure.basemap(*[, region, projection, ...])

Plot base maps and frames for the figure.

Figure.coast(*[, region, projection, ...])

Plot continents, shorelines, rivers, and borders on maps

Figure.colorbar(*[, region, projection, ...])

Plot a gray or color scale-bar on maps.

Figure.contour([data, x, y, z, annotation, ...])

Contour table data by direct triangulation.

Figure.grdcontour(grid, *[, annotation, ...])

Convert grids or images to contours and plot them on maps.

Figure.grdimage(grid, *[, img_out, frame, ...])

Project and plot grids or images.

Figure.grdview(grid, *[, region, ...])

Create 3-D perspective image or surface mesh from a grid.

Figure.histogram(data, *[, horizontal, ...])

Plots a histogram, and can read data from a file or list, array, or dataframe.

Figure.image(imagefile, *[, region, ...])

Place images or EPS files on maps.

Figure.inset(*[, position, box, margin, ...])

Create an inset figure to be placed within a larger figure.

Figure.legend([spec, position, box, region, ...])

Plot legends on maps.

Figure.logo(*[, region, projection, ...])

Plot the GMT logo.

Figure.meca(spec, scale[, longitude, ...])

Plot focal mechanisms.

Figure.plot([data, x, y, size, direction, ...])

Plot lines, polygons, and symbols in 2-D.

Figure.plot3d([data, x, y, z, size, ...])

Plot lines, polygons, and symbols in 3-D.

Figure.psconvert([icc_gray, crop, ...])

Convert [E]PS file(s) to other formats.

Figure.rose([data, length, azimuth, sector, ...])

Plot windrose diagrams or polar histograms.

Figure.savefig(fname[, transparent, crop, ...])

Save the figure to a file.

Figure.set_panel([panel, fixedlabel, ...])

Set the current subplot panel to plot on.

Figure.shift_origin([xshift, yshift])

Shift plot origin in x and/or y directions.[dpi, width, method, waiting])

Display a preview of the figure.[terminator, ...])

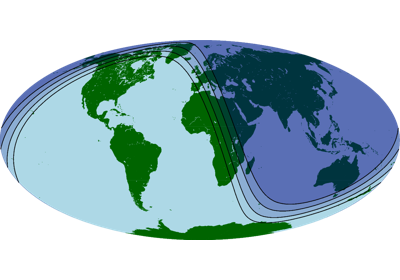

Plot day-light terminators or twilights.

Figure.subplot([nrows, ncols, figsize, ...])

Create multi-panel subplot figures.

Figure.text([textfiles, x, y, position, ...])

Plot or typeset text strings of variable size, font type, and orientation.

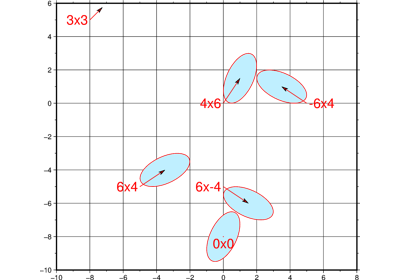

Figure.velo([data, vector, frame, cmap, ...])

Plot velocity vectors, crosses, anisotropy bars, and wedges.

Figure.wiggle([data, x, y, z, frame, ...])

Plot z=f(x,y) anomalies along tracks.

Examples using pygmt.Figure
