Plotting features on a 3-D surface

In addition to draping a dataset (grid or image) on top of a topographic surface, you may want to add additional features like coastlines, symbols, and text annotations. This tutorial shows how to use pygmt.Figure.coast, pygmt.Figure.plot3d, and pygmt.Figure.text to add these features on a 3-D surface created by pygmt.Figure.grdview.

This tutorial builds a 3-D map with additional features in four steps:

1. Creating a 3-D surface

2. Adding coastlines on a 3-D surface

3. Adding symbols on a 3-D surface

4. Adding text annotations on a 3-D surface

import pandas as pd
import pygmt
from pygmt.params import Axis, Frame

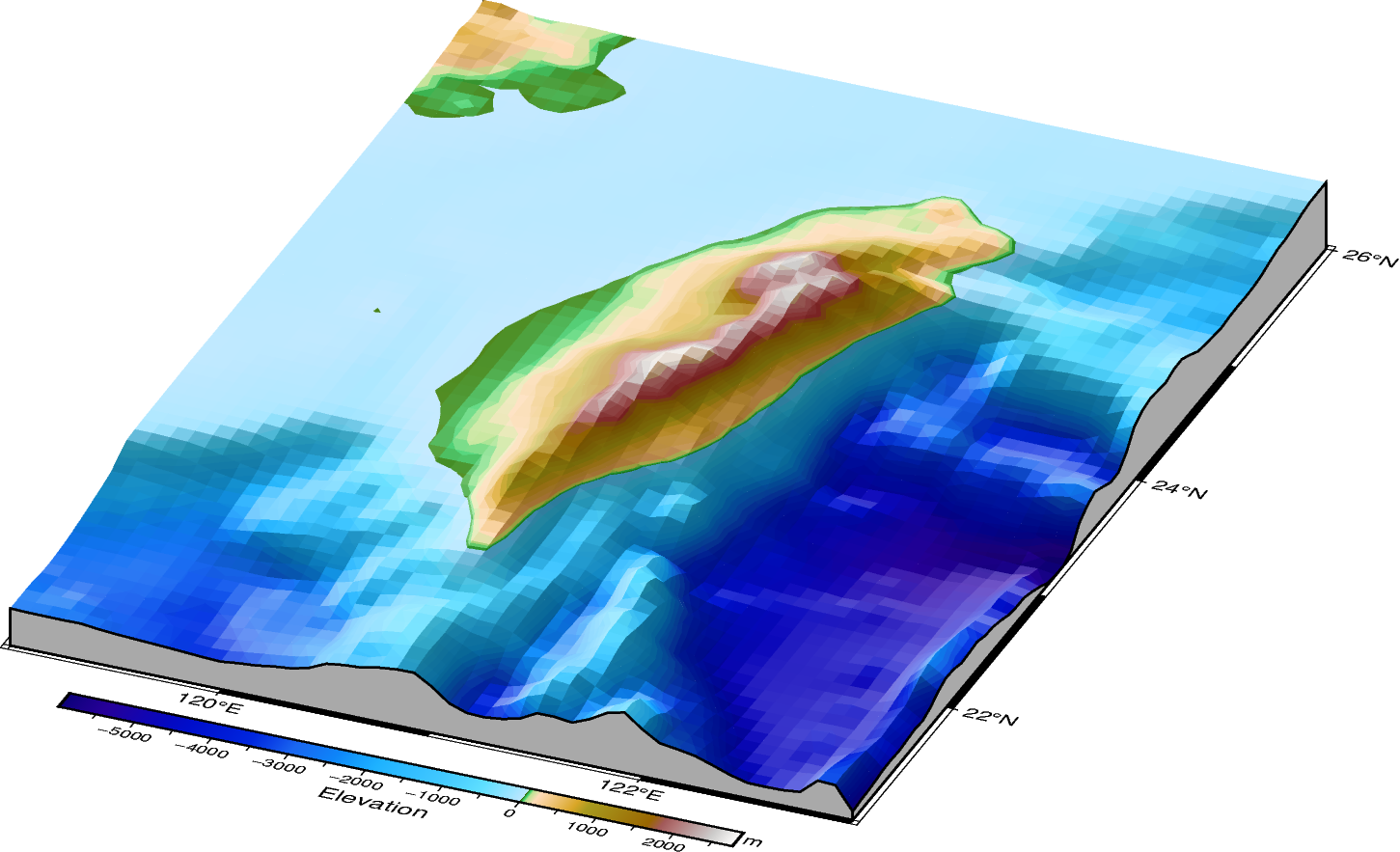

1. Creating a 3-D surface

In the first step, we create a 3-D topographic map using pygmt.Figure.grdview. We use a region around Taiwan to demonstrate adding features on a 3-D surface.

# Define the study area in degrees East or North
region_2d = [119, 123, 21, 26]  # [lon_min, lon_max, lat_min, lat_max]

# Download elevation grid for the study region with a resolution of 5 arc-minutes.
grd_relief = pygmt.datasets.load_earth_relief(resolution="05m", region=region_2d)

# Determine the 3-D region from the minimum and maximum values of the relief grid
region_3d = [*region_2d, grd_relief.min().to_numpy(), grd_relief.max().to_numpy()]

fig = pygmt.Figure()

# Set up a colormap for topography and bathymetry that matches the grid range
pygmt.makecpt(
    cmap="gmt/etopo1",
    series=[grd_relief.min().to_numpy(), grd_relief.max().to_numpy()],
)

# Create a 3-D surface
fig.grdview(
    projection="M12c",  # Mercator projection with a width of 12 cm
    region=region_3d,
    grid=grd_relief,
    cmap=True,
    surftype="surface",
    shading="+a0/270+ne0.6",
    perspective=[157.5, 30],  # Azimuth and elevation for the 3-D plot
    zsize="1.5c",
    facade_fill="darkgray",
    frame=Frame(axes="wSnE", axis=Axis(annot=True, tick=True)),
)

# Add a colorbar
fig.colorbar(perspective=True, annot=1000, tick=500, label="Elevation", unit="m")

fig.show()

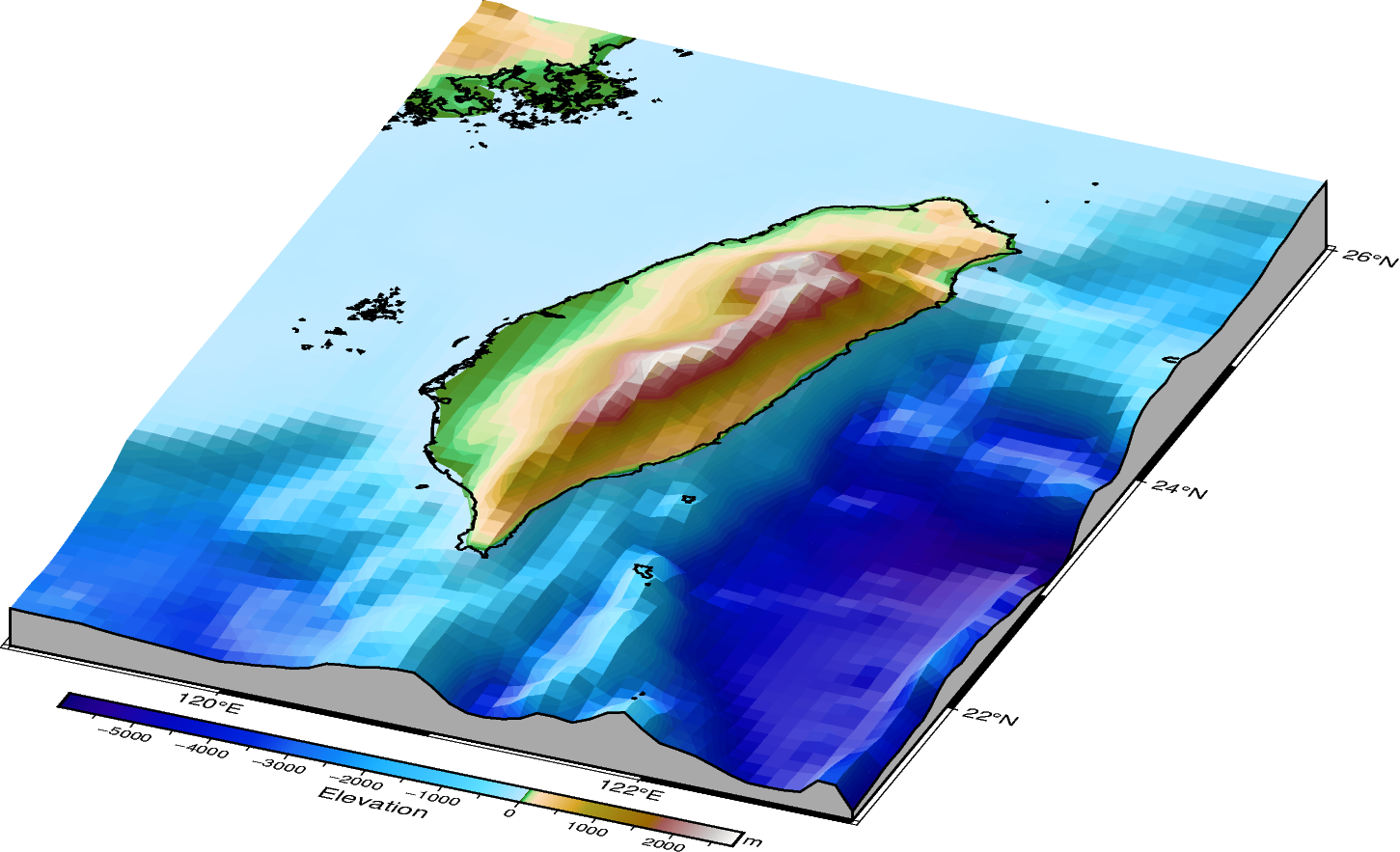

2. Adding coastlines on a 3-D surface

Next, we add coastlines using pygmt.Figure.coast with a matching perspective setting. Here we set the z-level to 0 so coastlines are drawn at sea level.

# Add coastlines on top of the 3-D surface
# Use an explicit perspective to match grdview (azimuth=157.5, elevation=30)
# and set the z-level to 0 so the coastlines are drawn at sea level.
fig.coast(perspective=[157.5, 30, 0], resolution="high", shorelines="1/1p,black")

fig.show()

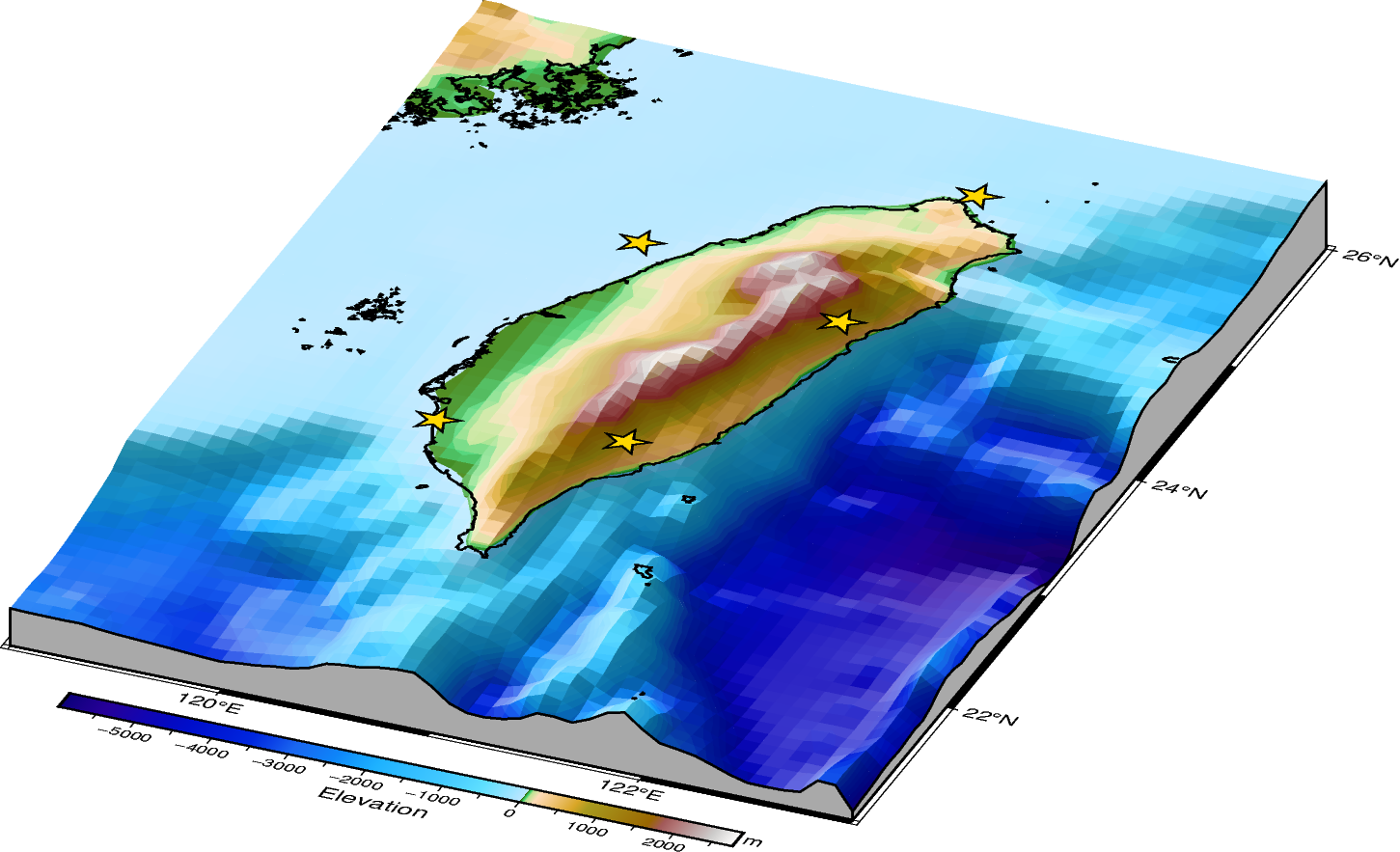

3. Adding symbols on a 3-D surface

In the third step, we add star symbols on top of the same 3-D map. To plot symbols on a 3-D surface, use pygmt.Figure.plot3d. The z-coordinate should be set to a value at or above the maximum elevation to ensure the symbols are visible. Note that 3-D rendering in GMT/PyGMT uses a painter’s algorithm (depth sorting) rather than true 3-D occlusion. From some viewpoints, symbols that should be hidden behind terrain may still appear visible.

# Sample point data: five coastal cities around Taiwan
cities = pd.DataFrame(
    {
        "longitude": [121.74, 121.61, 121.14, 120.30, 120.53],
        "latitude": [25.13, 23.99, 22.76, 22.63, 24.27],
        "name": ["Keelung", "Hualien", "Taitung", "Kaohsiung", "Taichung Port"],
    }
)

# Use one common z-level so all stars are drawn at the same height above the surface.
cities["z"] = grd_relief.max().to_numpy()

# Add five identical star symbols on top of the 3-D surface
fig.plot3d(
    x=cities.longitude,
    y=cities.latitude,
    z=cities.z,
    style="a0.65c",
    fill="gold",
    pen="0.8p,black",
    perspective=True,
)

fig.show()

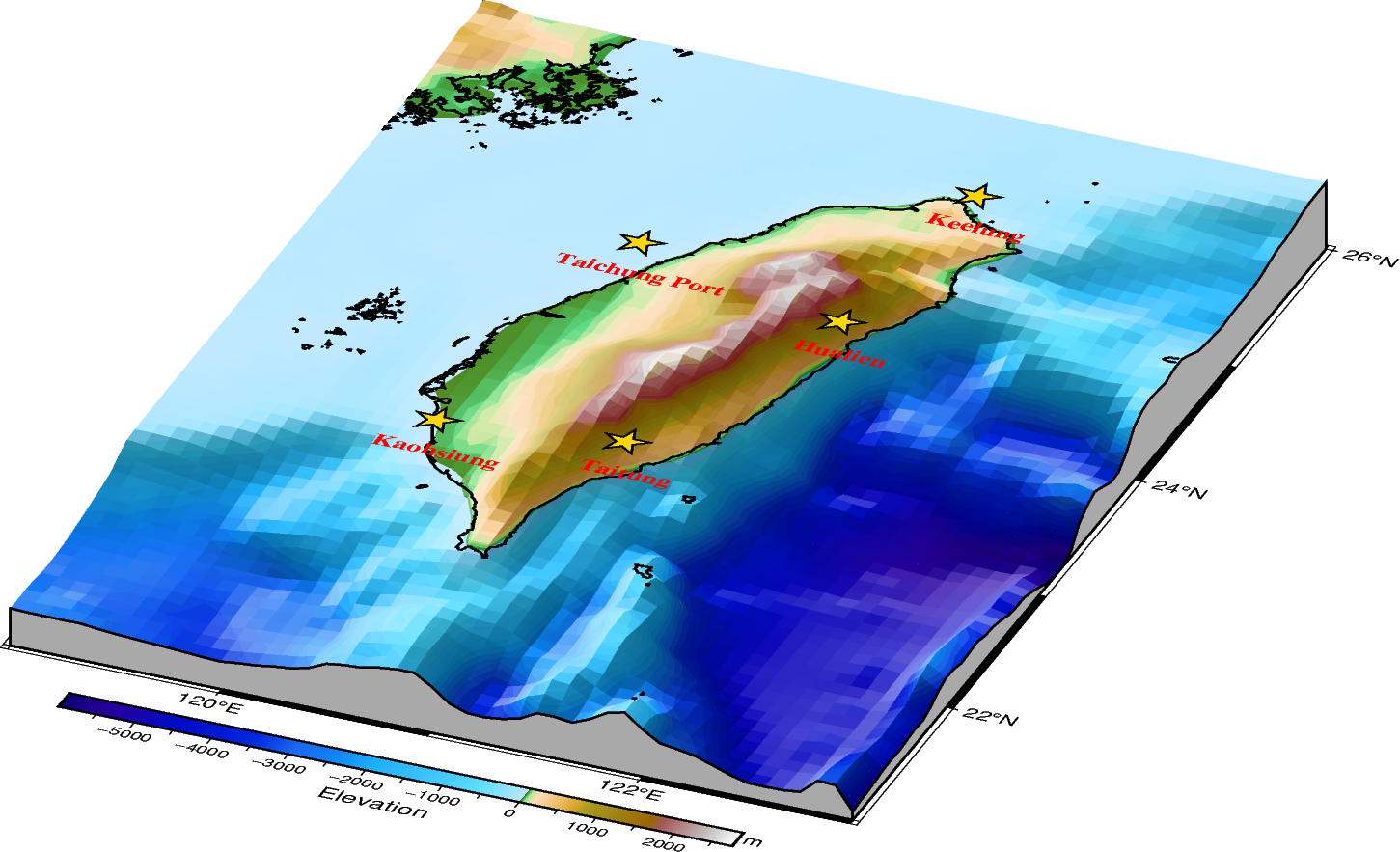

4. Adding text annotations on a 3-D surface

In the final step, we add text labels to the same 3-D map. To add text annotations on a 3-D surface, use pygmt.Figure.text with perspective=True. Note that the current implementation of text does not support a z parameter for controlling the vertical position of text labels. The text will be placed at the base of the 3-D plot (z=0).

# Add text labels for cities
# Note: text is placed at z=0 (base level) since z parameter is not yet supported
fig.text(
    x=cities.longitude,
    y=cities.latitude,
    text=cities.name,
    perspective=True,
    font="11p,Times-Bold,red",
)

fig.show()
